Intended use

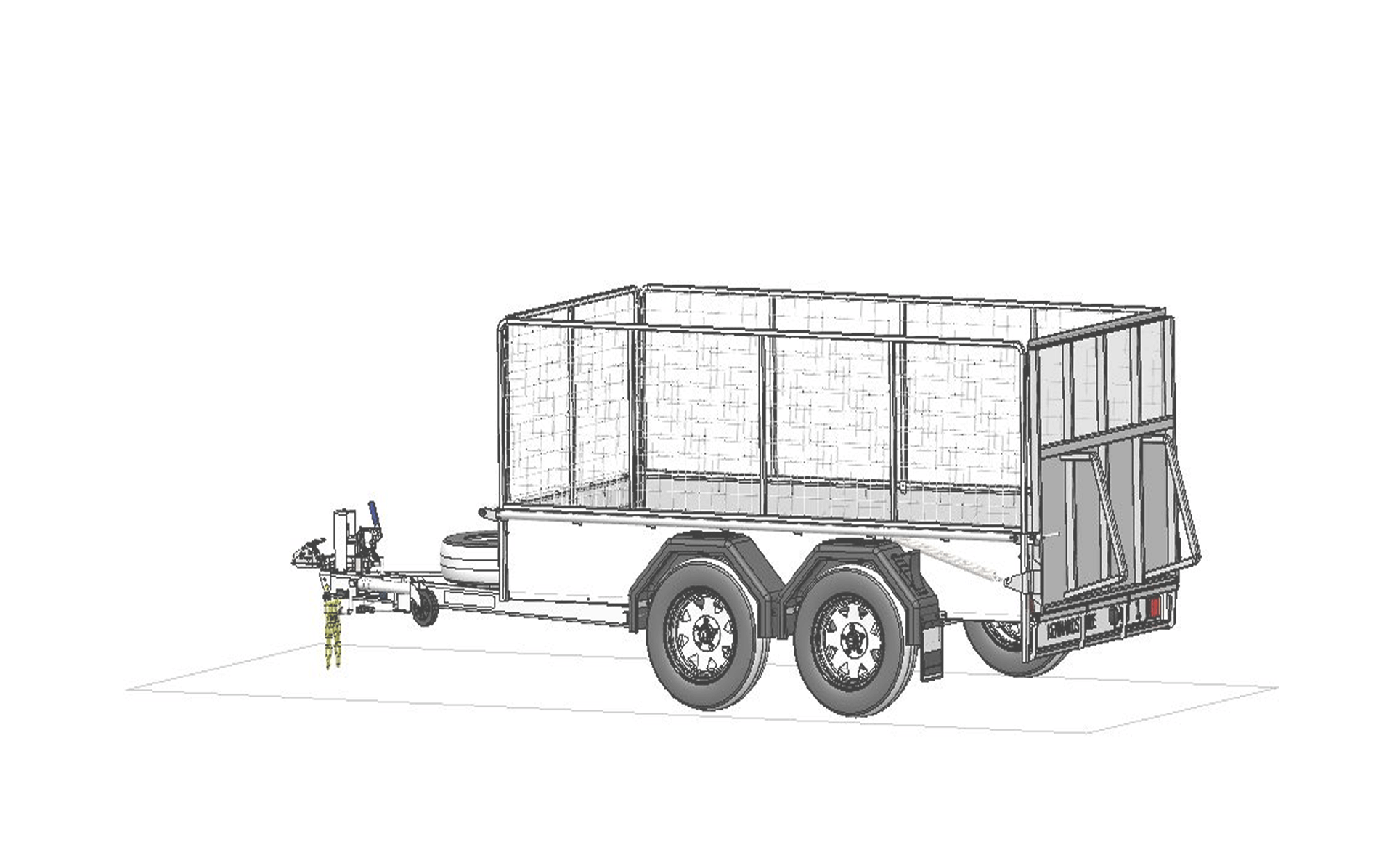

Large dual box trailer with crate and spring assisted full width mesh loading ramp. This trailer has 1.85 ton loading capacity and is perfect for a wide range of transporting needs

  • Category: Box Trailer KH Onehunga
  • Compass serial #: 11446
  • Build date: 28 October 2022
  • Invoice number #: 88209
  • Registration #: 443T3
  • Plant / Asset / Vin #: 3011921

Specifications

Dimensions

Design details

Image gallery

Order parts

Specifications

Tare Weight

650kg

Inside deck area

H 1100mm L 3000mm W 1500mm

Max load

1850kg

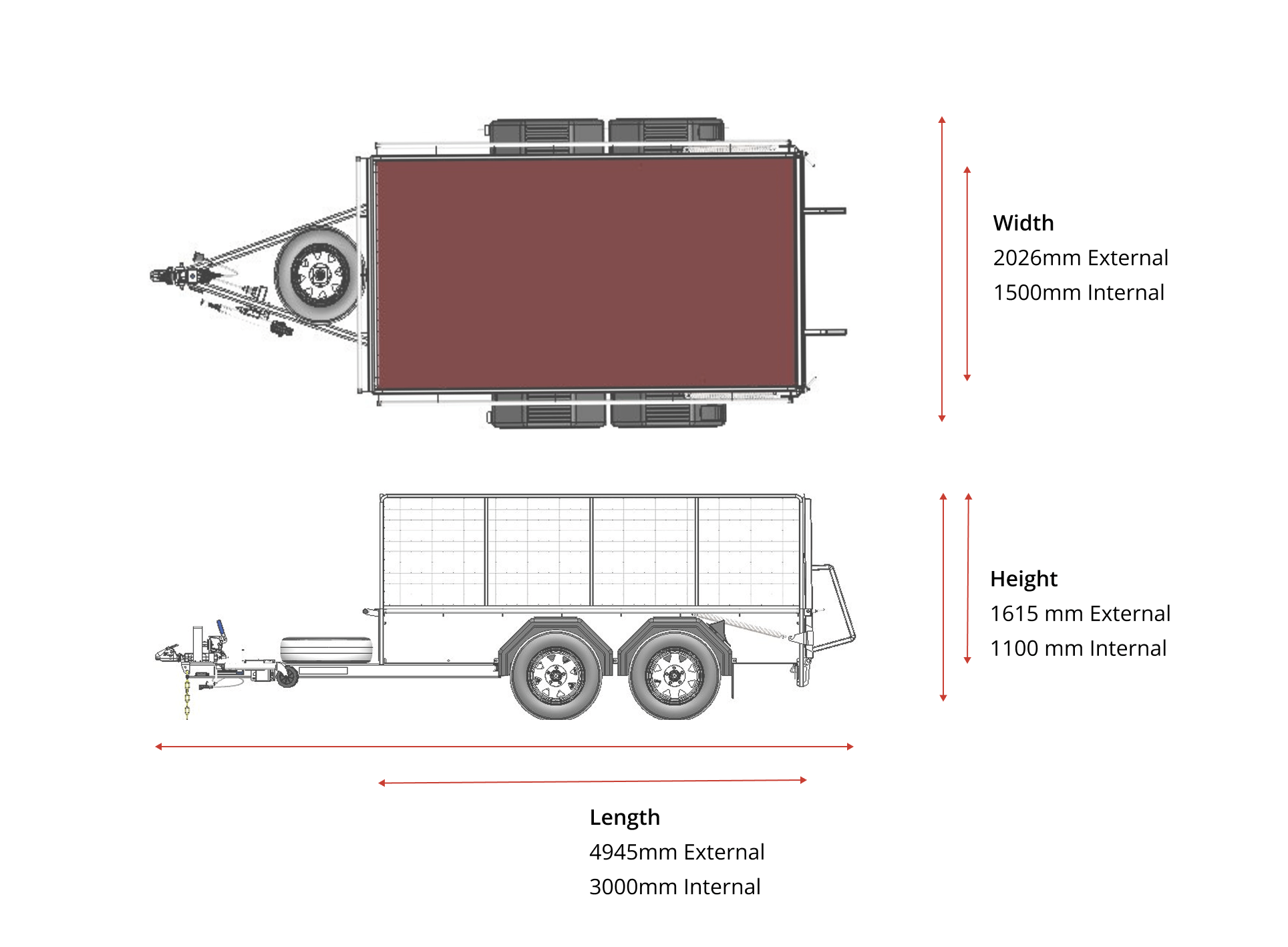

Outside dimensions

H 1615mm L 4945mm W 2026mm

Gross vehicle mass (GVM)

2500kg

Dimensions

Design details

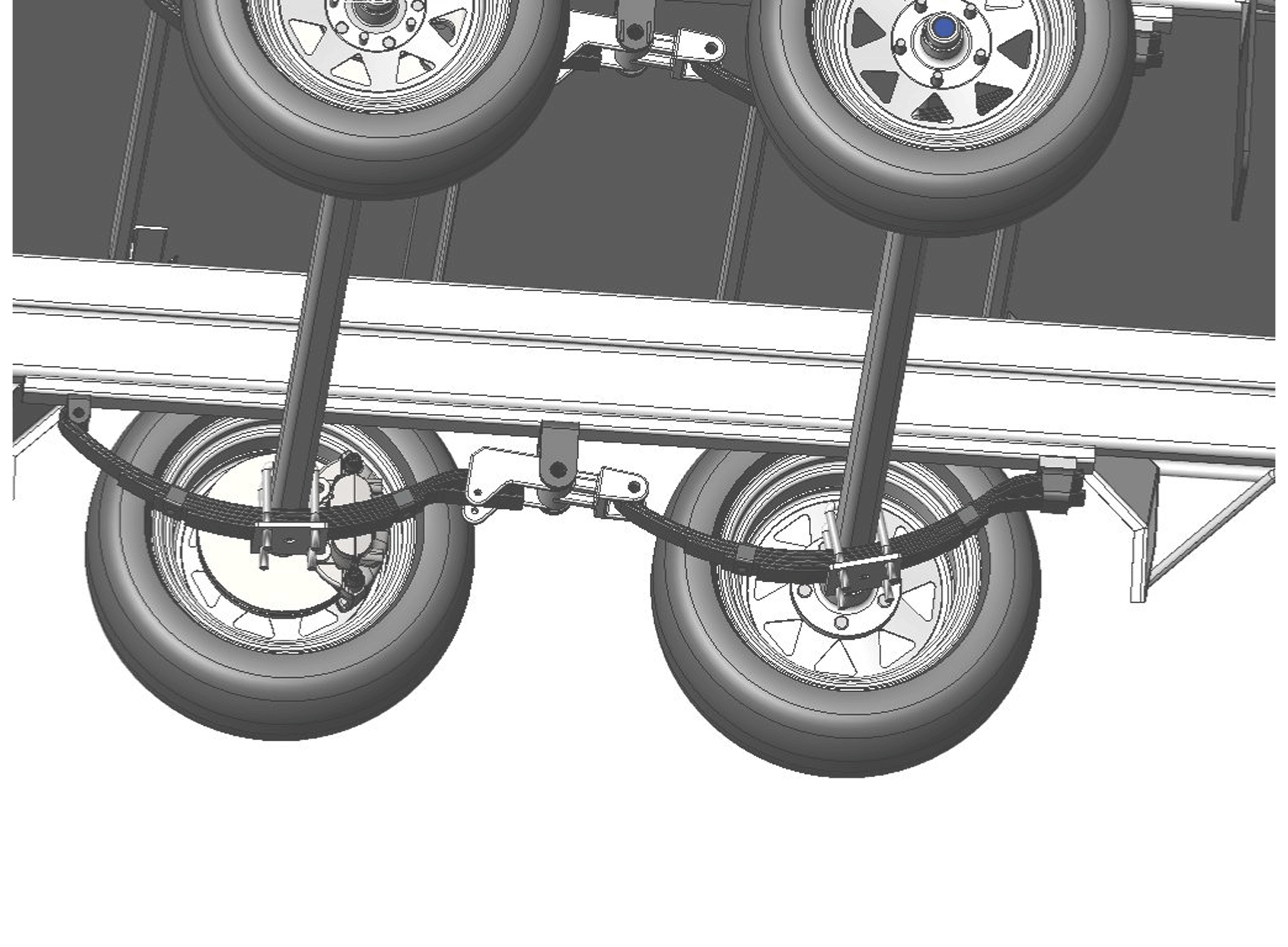

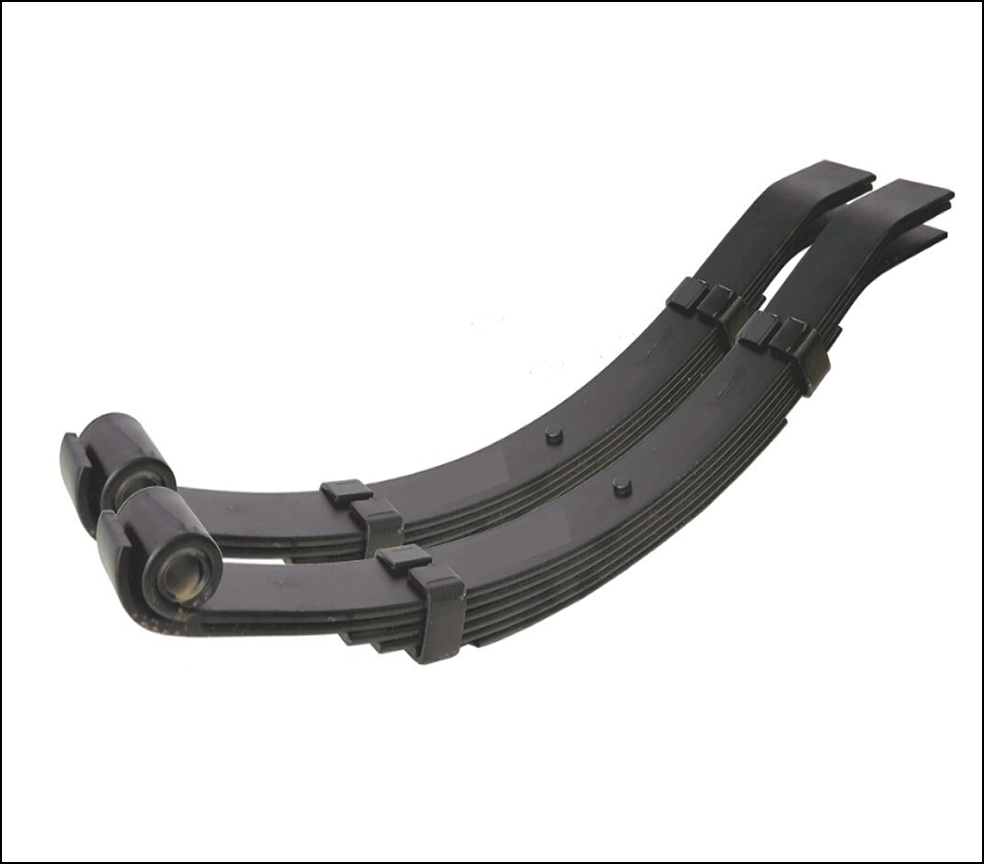

Dual axle with equalizing suspension

Dual axle trailer with equalising suspension, designed for transporting heavy loads with improved stability and ride quality. Features an equalizing suspension system that balances weight across both axles, ensuring smoother towing over uneven terrain and reducing stress on the trailer frame and cargo.

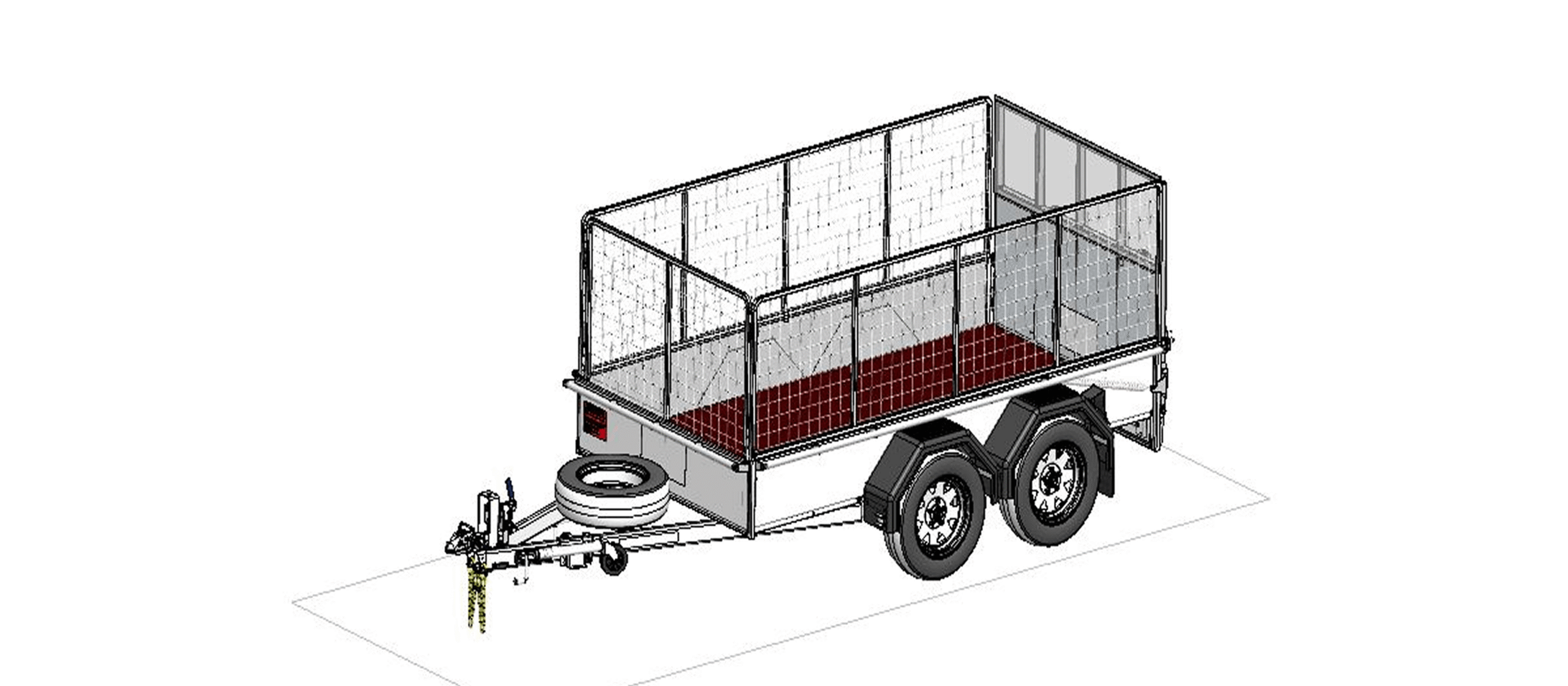

Crate with full width loading ramp

The trailer features an extended flat loading surface, providing more space for equipment and cargo

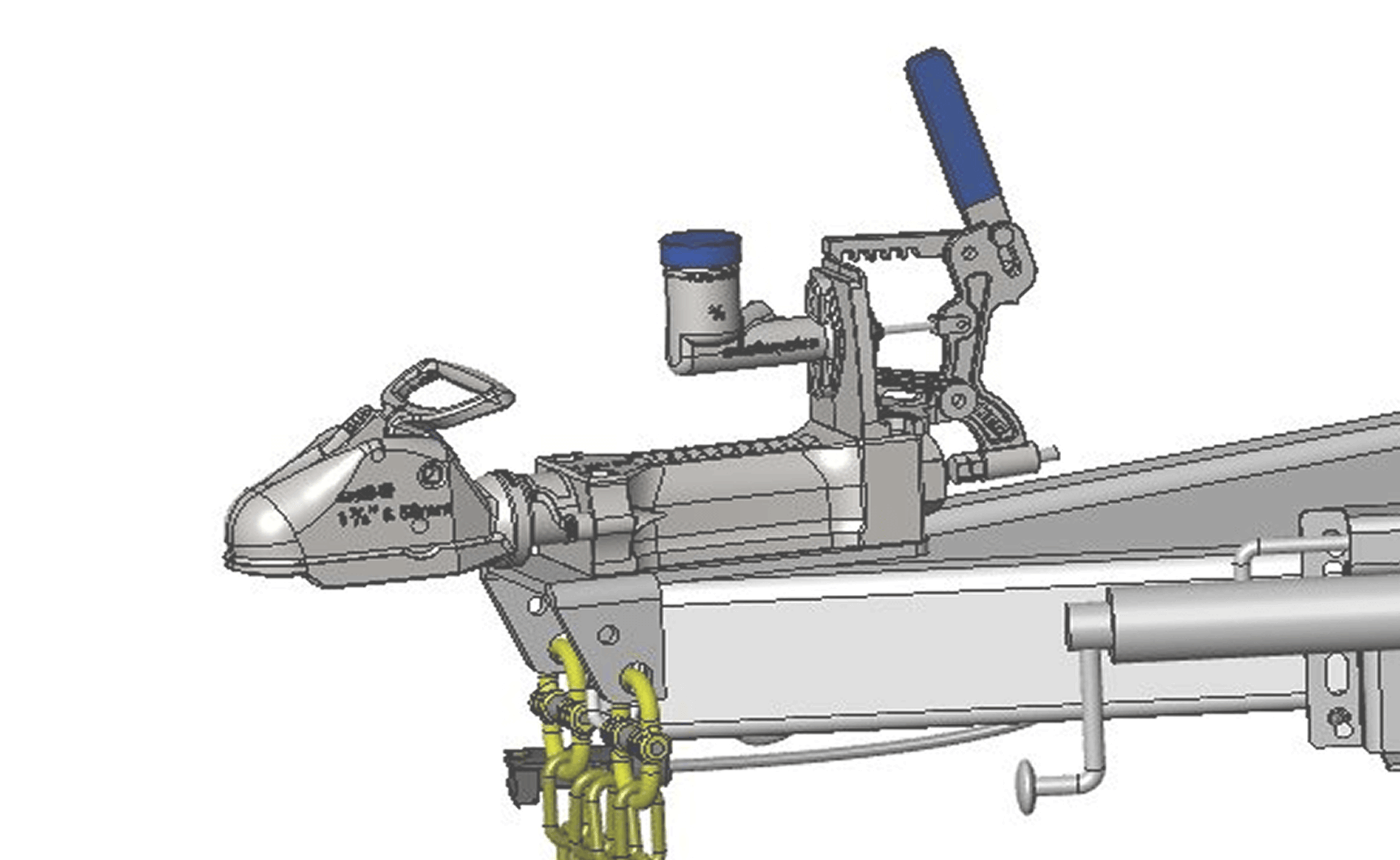

2500kg-Rated Multi-Fit Coupling

Automatically fits 50mm or 1 7/8" towballs, featuring SILENTRIDE noise dampener for rattle-free use. Larger plunger ensures superior towball retention. Made from high-quality SG iron with optional security lock pin.

Image Gallery

Order parts

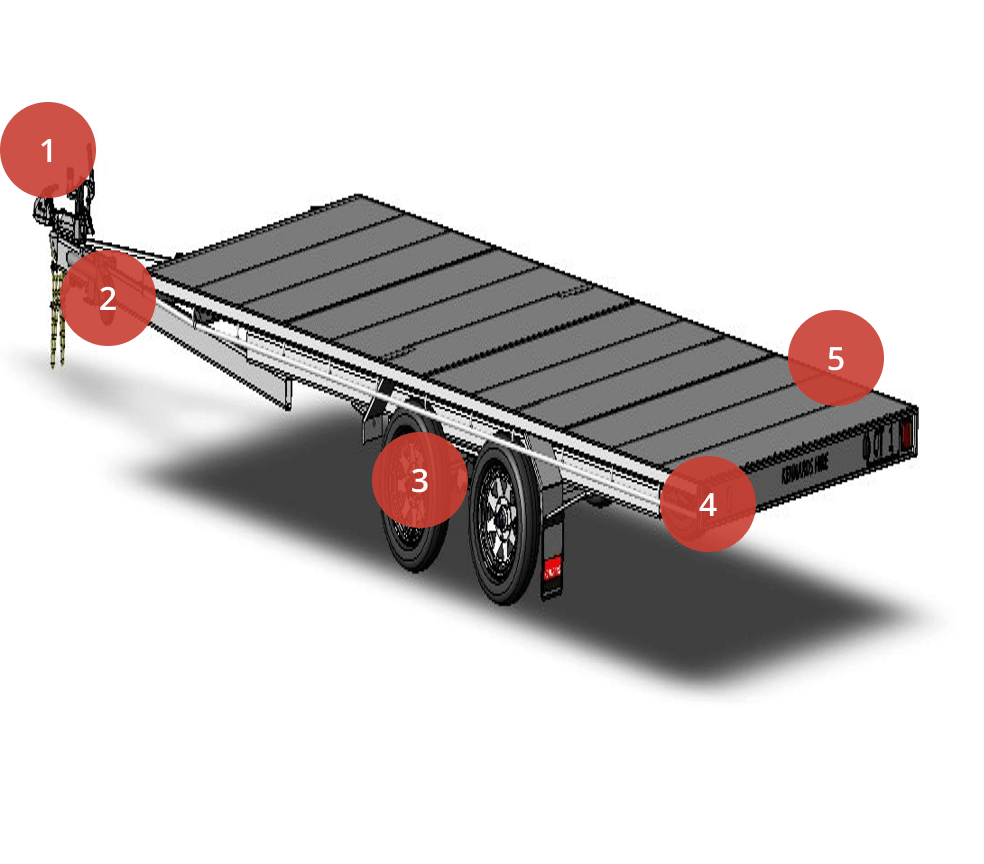

Select a section

  • Coupling, Master Cylinder and brake hoses

    View

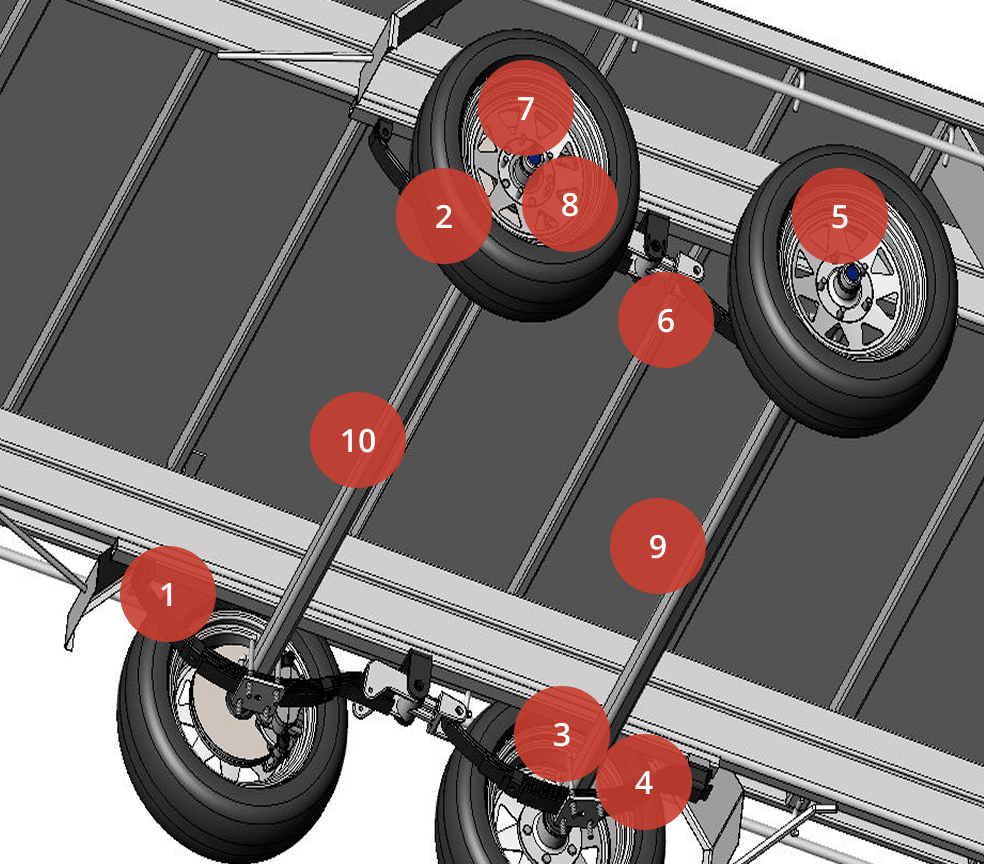

  • Disc brake, Hub, Wheels & Suspension components

    View

  • Jockey wheel and U-bolts

    View

  • Lights and wiring

    View
